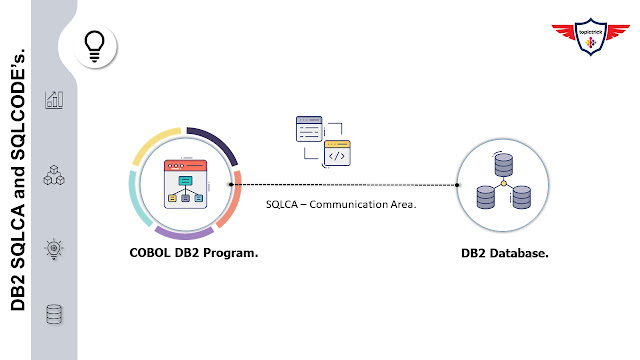

DB2 SQLCA Codes.

The return codes indicate whether the executed statement succeeded or failed. Because the SQLCA is a valuable problem-diagnosis tool, it is a good idea to include instructions to display some of the information contained in the SQLCA in your application programs.
Name
Data Type
Purpose
SQLCAID
CHAR(8)
An "eye catcher" for storage dumps containing the text 'SQLCA'.
SQLCABC
INTEGER
Contains the length of the SQLCA: 136.
SQLCODE
INTEGER
Contains the SQL return code: 0 (successful execution, although there might have been warning messages); positive (successful execution, with an exception condition); negative (error condition).
SQLERRML
SMALLINT
Length indicator for SQLERRMC, in the range 0 through 70: 0 means that the value of SQLERRMC is not pertinent.
SQLERRMC
VARCHAR(70)
Contains one or more tokens, separated by X'FF', that are substituted for variables in the descriptions of error conditions.
SQLERRP
CHAR(8)
Provides a product signature and, in the case of an error, diagnostic information, such as the name of the module that detected the error. In all cases, the first three characters are DSN for DB2 for z/OS.
SQLERRD(1)
INTEGER
Contains an internal error code.
SQLERRD(2)
INTEGER
Contains an internal error code.
SQLERRD(3)
INTEGER
Contains the number of rows affected after INSERT, UPDATE, and DELETE but not rows deleted as a result of CASCADE delete. Set to 0 if the SQL statement fails, indicating that all changes made in executing the statement were canceled. Set to 1 for a mass delete from a table in a segmented table space. SQLERRD(3) can also contain the reason code of a timeout or deadlock for SQLCODES 911 and 913.
SQLERRD(4)
INTEGER
Generally contains a timer-on, a short floating-point value that indicates a rough relative estimate of resources required. It does not reflect an estimate of the time required. When preparing a dynamically defined SQL statement, you can use this field as an indicator of the relative cost of the prepared SQL statement. For a particular statement, this number can vary with changes to the statistics in the catalog. It is also subject to change between releases of DB2 for z/OS.
SQLERRD(5)
INTEGER
Contains the position or column of a syntax error for a PREPARE or EXECUTE IMMEDIATE statement.
SQLERRD(6)
INTEGER
Contains an internal error code.
SQLWARN0
CHAR(1)
Contains a W if at least one other indicator also contains a W; otherwise, contains a blank.
SQLWARN1
CHAR(1)
Contains a W if the value of a string column was truncated when assigned to a host variable.
SQLWARN2
CHAR(1)
Contains a W if null values were eliminated from the argument of a column function; not necessarily set to W for the MIN function, because its results are not dependent on the elimination of null values.
SQLWARN3
CHAR(1)
Contains a W if the number of result columns is larger than the number of host variables. Contains a Z if fewer locators were provided in the ASSOCIATE LOCATORS statement than the stored procedure returned.
SQLWARN4
CHAR(1)
Contains a W if a prepared UPDATE or DELETE statement does not include a WHERE clause.
SQLWARN5
CHAR(1)
Contains a W if the SQL statement was not executed because it is not a valid SQL statement in DB2 for z/OS.
SQLWARN6
CHAR(1)
Contains a W if the addition of a month or year duration to a DATE or TIMESTAMP value results in an invalid day, such as June 31. Indicates that the value of the day was changed to the last day of the month to make the result valid.
SQLWARN7
CHAR(1)
Contains a W if one or more nonzero digits were eliminated from the fractional part of a number used as the operand of a decimal multiply or divide operation.
SQLWARN8
CHAR(1)
Contains a W if a character that could not be converted was replaced with a substitute character.
SQLWARN9
CHAR(1)
Contains a W if arithmetic exceptions were ignored during COUNT DISTINCT processing. Contains a Z if the stored procedure returned multiple result sets.
SQLWARNA
CHAR(1)
Contains a W if at least one character field of the SQLCA or the SQLDA names or labels is invalid because of a character-conversion error.
SQLSTATE
CHAR(5)
Contains a return code for the outcome of the most recent execution of an SQL statement.
